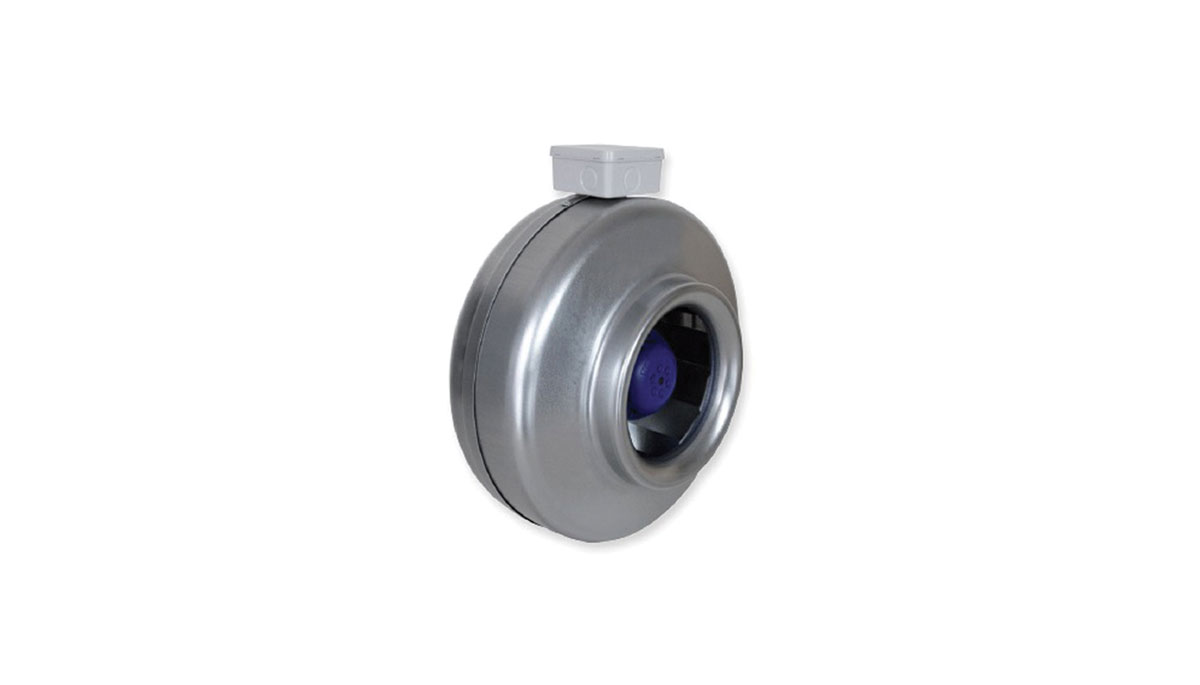

Duct fans, BCS

Technical specification

The centrifugal duct fans BCS are used for general exchanged, suction and accumulative ventilation systems.Suitable for horizontal or vertical installation.
Application
They are used for ventilation of offices, restaurants, technical rooms etc. Designed for installation of circular ducts.
Construction
BCS fans have a steel housing, with integrated guide vanes in the housing that stop turbulence and direct the air flow. The electric motor has an external rotor which cools with maximum efficiency because of the fact that it is situated in the middle of the airflow. The impeller is with vanes turned backwards. The dynamic balance of the construction motor+impeller is made out of two plains according to the given standard DIN ISO 1940.
Configuration
Standard design - operating temperature up to 50 °C (look at the chart)
Monophased – 230V; 50Hz
Protection class: IP44
Class of insulation: F
Thermal overheating protection
Technical specifications
Model/Max flow (m3/h)/Voltage (V/Hz)/ Power (kW) / Electricity (A)/Operating temperature (° C)
